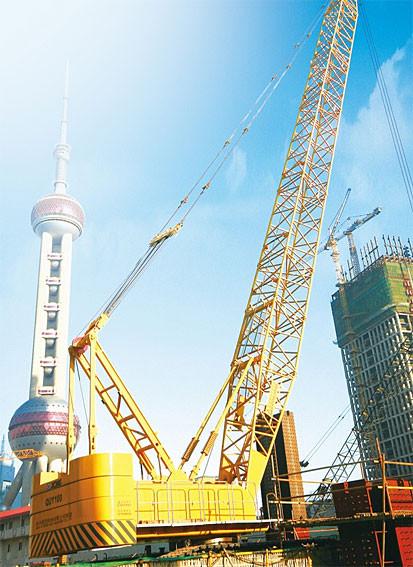

XCMG Crawler Crane QUY100

Max. lifting capacity

Boom

t

100

Jib

t

11

Max. load moment

kN.m

5500

Boom length

m

18～72

Boom elevating angle

°

0～80°

Fixed jib length

m

12～24

Fixed jib offset

10°,30°

Max. single line hoist speed (at 5th layer with no load)

m/min

120

Max. single line elevating speed (at 5th layer with no load)

m/min

45

Max. swing speed

r/min

1.4

Travel speed

km/h

1.1

Min. elevating time

s

240

Winch hoist speed(with full load)

m/min

4

Max. grade-ability

30%

Mean ground pressure

MPa

0.0927

Engine output

kW

200

Total mass (main hook block,18m boom)

t

114

Max. base machine weight for transport
(without counterweight, L/R crawler, lattice boom)

t

40.0

Max. base machine dimension for transport (L×W×H)

m

9.6×3.3×3.3
