Home > Truck Crane >

XCMG Truck Crane QY40K

Product Categories

Shanghai Bomar Industrial Co.,Ltd

Contact Now

Name: XCMG Truck Crane QY40K
Brand: XCMG
Price: 1 USD

Place of Origin : China

Brand Name : XCMG

Certification : CE, ISO9001

Model Number : QY40K

MOQ : 1 set

Packaging Details : Bulk Vessel & Roll on/off vessel

Delivery Time : 30 days

Payment Terms : T/T or L/C at sight

Contact Now

Dimension	Unit	QY40K
Overall length	mm	13050
Overall width	mm	≤2800
Overall height	mm	3430
Weight
Total weight in travel	kg	40400
Front axle load	kg	14500
Rear axle load	kg	25900
Power
Engine model		WD615.334
Engine rated power	kW/(r/min)	247 / 2200
Engine rated torque	N.m/(r/min)	1350 / 1400
Travel
Max. travel speed	km/h	75
Min. turning diameter	m	≤24
Min. ground clearance	mm	285
Approach angle	°	16
Departure angle	°	11
Max. grade ability	%	46
Fuel consumption for 100km	L	46
Main performance
Max. rated total lifting capacity	t	40
Min. rated working radius	mm	3000
Turning radius at turntable tail	m	3.482
Max. lifting torque	kN.m	1400
Base boom	m	10.7
Fully extended boom	m	40.1
Fully extended boom+ jib	m	55.1
Longitudinal outrigger span	m	5.65
Lateral outrigger span	m	6.6
Working speed
Boom luffing time	s	≤88
Boom full extension time	s	≤180
Max. swing speed	r/min	≥2.0
Max. speed of main winch (single rope)	m/min	≥110
Max. speed of aux. winch (single rope)	m/min	≥110

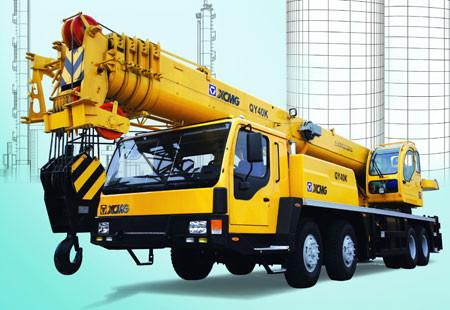

XCMG Truck Crane QY40K Images
